FMEA — FAILURE MODES & EFFECTS ANALYSIS

FMEA — FAILURE MODES & EFFECTS ANALYSIS · TRAINING DECK + REFERENCE GUIDE + WORKSHEET

Most problems are cheaper to fix on paper than on the line. This complete risk-management toolkit teaches your team to find how a design or process could fail — before it fails for real — and to prioritize the risks worth acting on. No background needed: it's built from scratch, in plain language, and you can start your first FMEA the same day.

Perfect for quality and reliability engineers, continuous improvement and operations people, design and manufacturing engineers, project managers, and anyone responsible for getting ahead of risk in a product or a process.

WHAT YOU GET

- Training slides (PPTX): a guided Module 3 deck that builds it up from scratch, the foundations of risk, the two forms (Design vs Process FMEA), the full 10-step process, acting on risk, and a complete worked example.

- Reference guide (DOCX): a companion guide with full Severity, Occurrence and Detection 1–10 scales, the 6M cause checklist, the ALARP model and the mistake-proofing hierarchy — keep it beside the worksheet as you score.

- FMEA worksheet (XLSX): a ready-to-use template — log each failure mode, score Severity, Occurrence and Detection, and the RPN calculates automatically. Includes analysis, action and re-analysis columns plus a ranking-scales sheet.

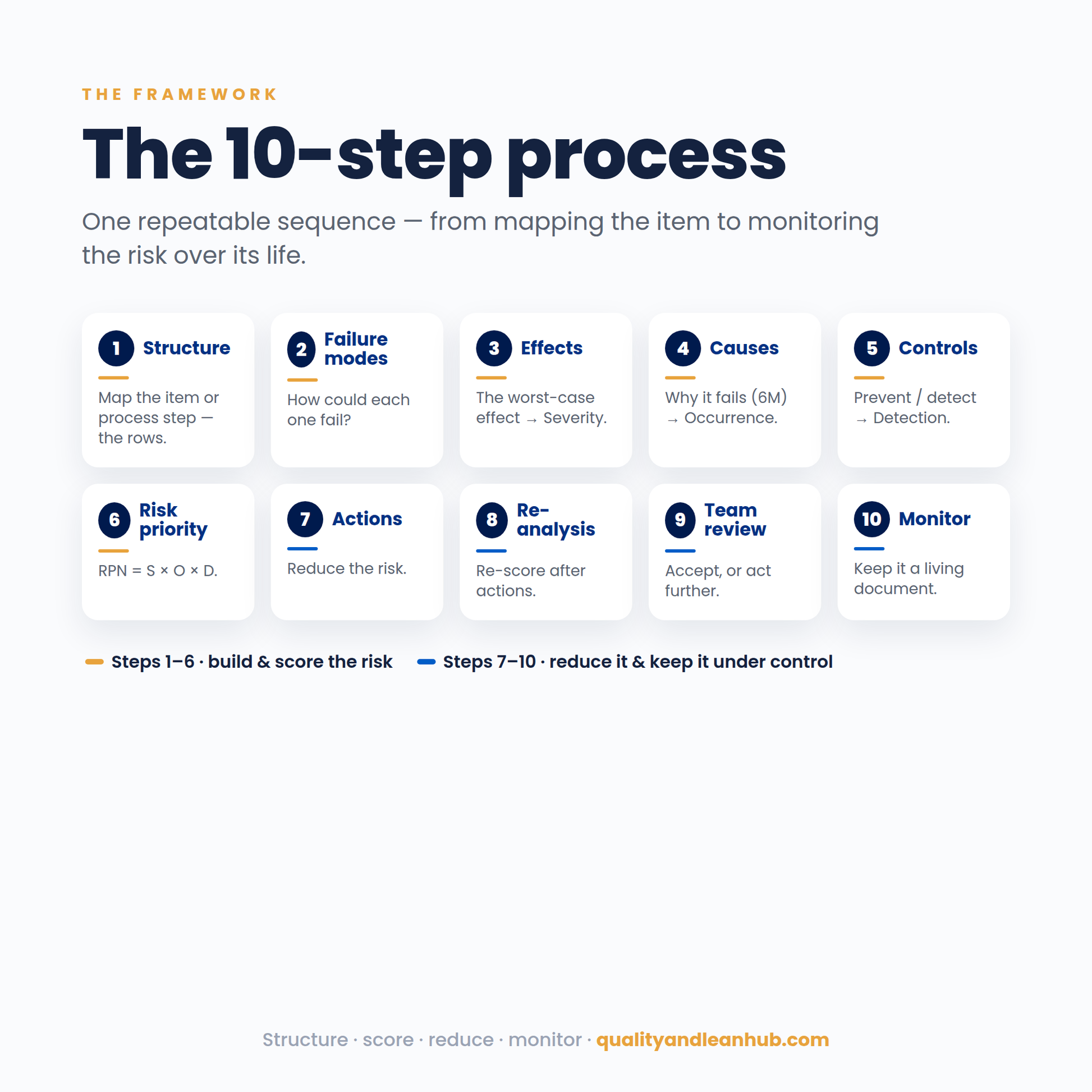

THE 10-STEP PROCESS

Steps 1–6 build and score the risk; steps 7–10 reduce it and keep it controlled.

1. Structure — list each item, function or process step (the rows).

2. Failure modes — every way each item could fail.

3. Effects & Severity — the worst-case consequence, rated 1–10.

4. Causes & Occurrence — why it happens (the 6M), rated 1–10.

5. Controls & Detection — what prevents or detects it, rated 1–10.

6. Risk Priority Number — RPN = Severity × Occurrence × Detection.

7. Actions — agree changes that lower Severity, Occurrence or Detection.

8. Re-analysis — re-score after actions for a revised RPN.

9. Team review — accept the residual risk, or act further.

10. Monitor — keep the FMEA a living document across the lifecycle.

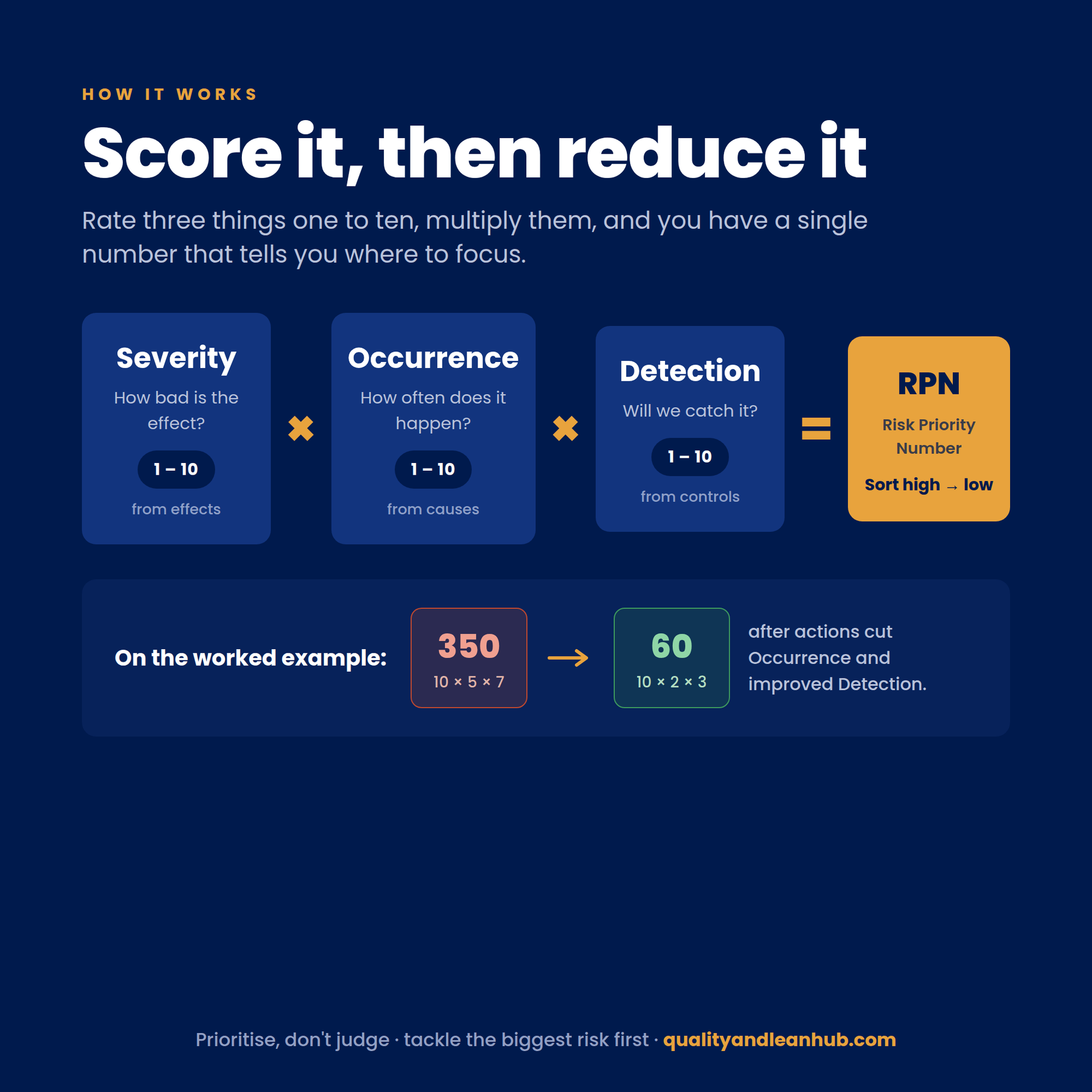

SCORE THE RISK — RPN = S × O × D

Rate three things one to ten — how bad the effect is (Severity), how often the cause happens (Occurrence), and how likely you are to catch it (Detection) — and multiply them. There is no universal "acceptable" RPN: sort the FMEA from highest RPN downward and work down the list.

Pro tip inside: prevent before you detect. Error-proofing (poka-yoke) that removes a mistake at source beats an active warning, which beats a downstream inspection.

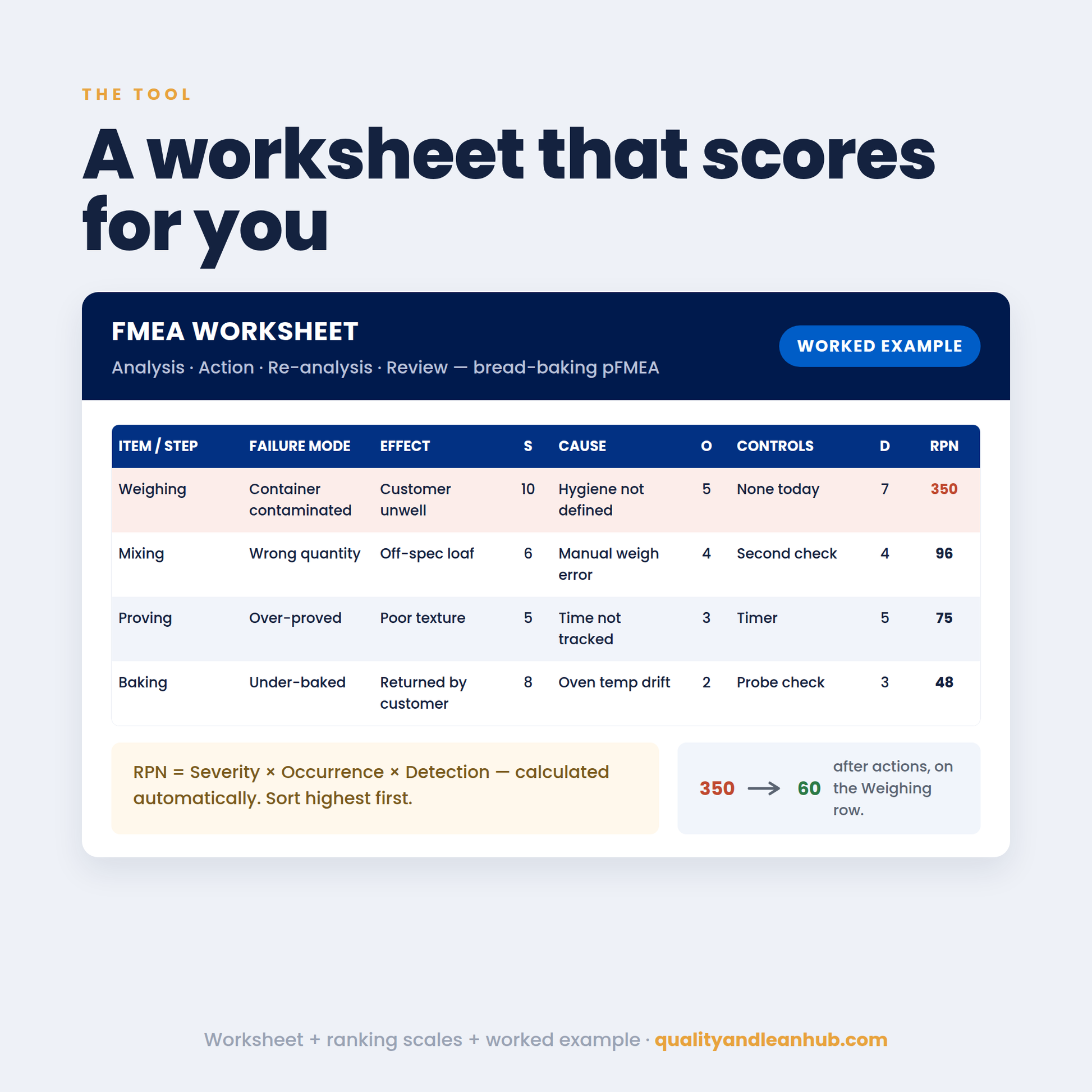

A WORKED EXAMPLE YOU CAN FOLLOW

A Process FMEA for baking bread. On the "Weighing" step, a contaminated container could make a customer unwell — Severity 10 × Occurrence 5 × Detection 7 = RPN 350. After defining a hygiene process and a pre-use check, Occurrence falls to 2 and Detection to 3, cutting the RPN to 60 — almost six-fold — without a redesign. The same example ships inside the worksheet so you can see a finished FMEA.

WHY TEAMS LOVE IT

- Fail on paper first: find how something could fail before it fails for real.

- Prioritize, don't guess: rank by RPN and tackle the biggest risk first.

- Prevent, not just detect: choose controls that stop the problem at source.

- Design or process: one method works for products and processes alike.

- Consistent scoring: full 1–10 Severity, Occurrence and Detection scales.

- Ready-to-use worksheet: auto-RPN, actions and re-analysis, adaptable to anything.

- No background needed: built from scratch; anyone can follow.

- Instant download: get all three files the moment you buy.

WHAT'S IN THE DOWNLOAD

- 1 x Training deck — .pptx (Module 3, fully editable)

- 1 x Reference guide — .docx (with the full S / O / D ranking scales)

- 1 x FMEA worksheet — .xlsx (auto-RPN, worked example & ranking scales)

Instant digital download. For personal and in-company training use.
